Holz Her Homag Pneumatic Case Clamp * For Cabinets / Dowel:
$2850.00

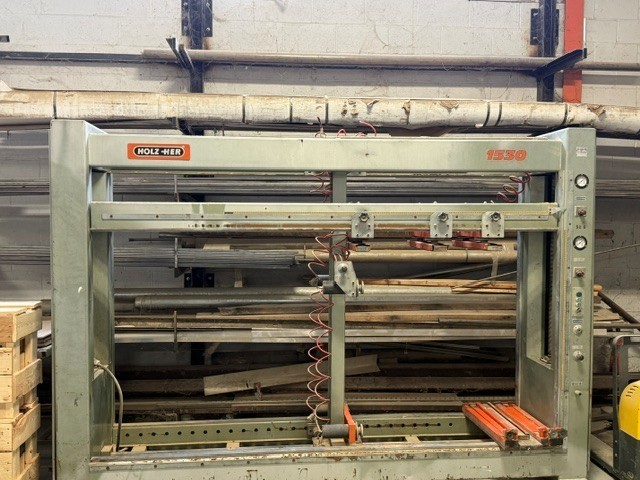

Holz Her Pneumatic Case Clamp * For Cabinet Making / Dowel1530Clamping Capacity & Dimensions

Maximum Length Capacity: 100 inches (~2540 mm)
Maximum Height Capacity: 50 inches (~1270 mm)
Maximum Width / Depth Capacity: 24 inches (~610 mm)
Machine Weight: Approx. 1,460 lbs (662 kg) to 3,750 lbs depending on specific base framing options [1, 2, 3]

Pressure Cylinders & Configurations

Total Pressure Cylinders: 14 pneumatic cylinders
Cylinder Stroke: 3-7/8 inches
Clamping Distribution: 2 cylinders per clamping bar
Vertical Pressure Beam: 1 movable beam equipped with 3 horizontal clamping bars
Horizontal Top Beam: Equipped with 4 adjustable vertical clamping bars
Counter Pressure: 4 adjustable counter pressure bars [, 2, 3]

Operational & Pneumatic Requirements

Operating Pressure: Designed for standard 90 to 100 PSI compressed air connections
Clamping Force: Delivers approximately 700 lbs of pressure per cylinder at 100 PSI
Adjustment Mechanism: The vertical beam rides on bearings for manual shifting and utilizes integrated air cylinders to lock tightly into position once aligned.
Controls: Built-in physical control panel equipped with independent pressure gauges
