Original Vintage Railway Engineering Plan – Hither Green Diesel-Electric Depot Layout Map

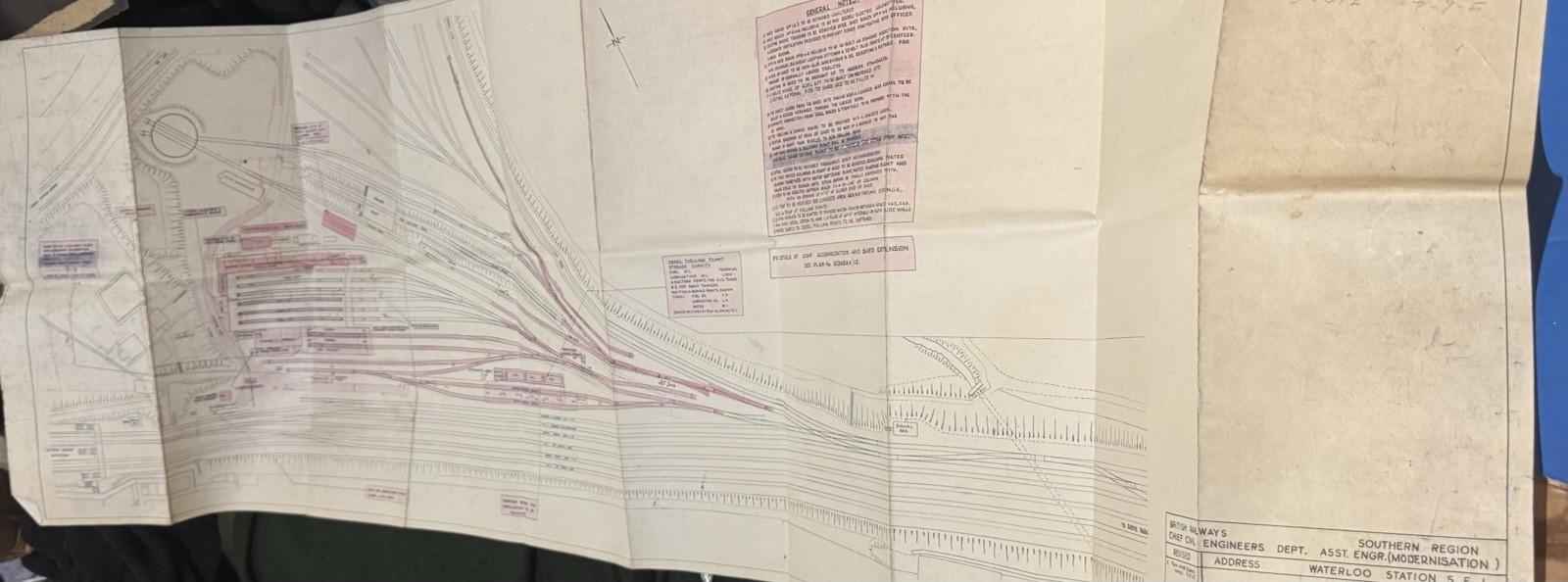

An exceptional, museum-quality original technical drawing and general engineering plan for the historic Hither Green Berthing and Maintenance Depot for Diesel-Electric Locomotives. Issued by British Railways (Southern Region, Assistant Engineer Modernisation, Waterloo Highlights & Specifications:

• Subject: Comprehensive track and facility layout plan for Hither Green, detailing shed extensions, inspection pits, turntable connections, fuelling installations, sand drying plant, and approach lines from Grove Park and Lee.


• General Notes Include: Detailed specifications regarding the retention and re-building of shed roads for diesel-electric locomotives, standard inspection pits with drainage and bulkhead lighting, flooring requirements, boiler house construction, and fuel/oil traps.


• Technical Details: Drawn to a scale of 40 feet to 1 inch. Includes revision notes (such as main store & road updates), official approvals signed by the Chief Civil Engineer, and reference number C.E. No. 10/3624 A/9 (Sheet 1 of
• Size: Impressive panoramic format measuring approximately 150 cm x 50 cm.

Condition: Pre-owned vintage condition. As a genuine working engineering document, it features traditional fold lines, minor edge wear, and authentic period handling marks consistent with mid-century British Railways infrastructure upgrades. Please examine all provided photos closely.

Shipping: Fast and secure dispatch. Shipped safely rolled inside a heavy-duty rigid postal tube to protect this large historical document during transit.
