Condition: Pre owned vintage condition with age and use wear

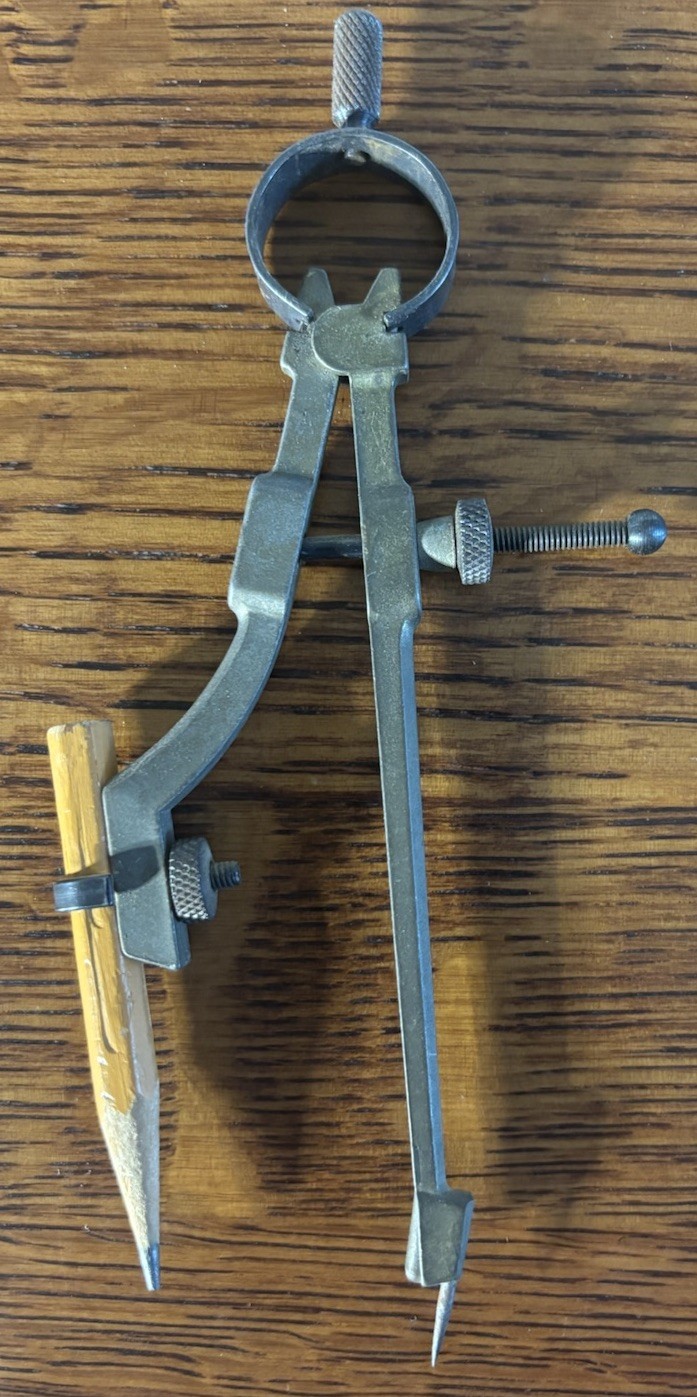

Vintage metal wing style pencil compass and scribing layout tool with adjustable pencil holder, pointed steel leg, spring ring pivot, and fine adjustment screw.
This traditional layout instrument was designed for drawing and scribing circles and arcs as well as transferring measurements during woodworking, carpentry, drafting, machining, and other layout work. One leg terminates in a sharp metal point that serves as the center pivot while the opposite curved leg holds a pencil for marking the work surface.
The compass features a large circular spring at the upper pivot with a knurled adjustment screw along with a threaded fine adjustment mechanism positioned between the legs. The pencil holder is adjustable using a knurled retaining screw and currently holds the pencil shown in the photos.
No manufacturer name, model number, country of manufacture, or other identifying markings were observed, so the maker is unknown.
The compass is in good used vintage condition overall with scratches, patina, discoloration, finish wear, and other surface wear consistent with age and previous use. The adjustment mechanisms are present and the legs open and close. The metal center point remains intact and pointed. The pencil shows considerable previous use and is included as pictured.
Condition details:
Vintage wing style compass
Pencil compass and scribing tool
Unbranded
Manufacturer unknown
Metal construction
Large circular spring pivot
Knurled upper adjustment screw
Threaded fine adjustment mechanism
Adjustable pencil holder
Knurled pencil retaining screw
Metal center point remains intact
Pencil included as pictured
Legs open and close
Adjustment hardware is present
Shows scratches and surface wear
Shows age related patina and discoloration
No major bends or breaks observed
No manufacturer markings observed
Please review all photos for exact condition
Item Details:
Brand: Unbranded
Type: Pencil Compass
Tool Type: Wing Compass
Instrument Type: Scribing Compass
Material: Metal
Color: Gray
Features: Adjustable, Fine Adjustment Screw, Pencil Holder, Spring Pivot
Point Type: Steel Scribing Point
Pencil Holder: Yes
Pencil Included: Yes
Adjustment Type: Threaded Screw
Pivot Type: Spring Ring
Application: Woodworking, Carpentry, Drafting, Layout, Machining
Suitable For: Drawing Circles, Scribing Arcs, Transferring Measurements, Layout Work
Manufacturer: Unknown
Model: Unknown
Country/Region of Manufacture: Unknown
Vintage: Yes
Original/Reproduction: Original
Condition: Used
Department: Hand Tools
Theme: Vintage Tools
Product Group: Measuring and Layout Tool
Thanks for looking and watching! Hopefully I have what you’re looking for, but if I don’t, I bet I will soon. Please review all photos to be sure you like what you see. If you have any questions or concerns, please feel free to reach out before purchasing. I package carefully and ship promptly. Thanks again for your interest!
