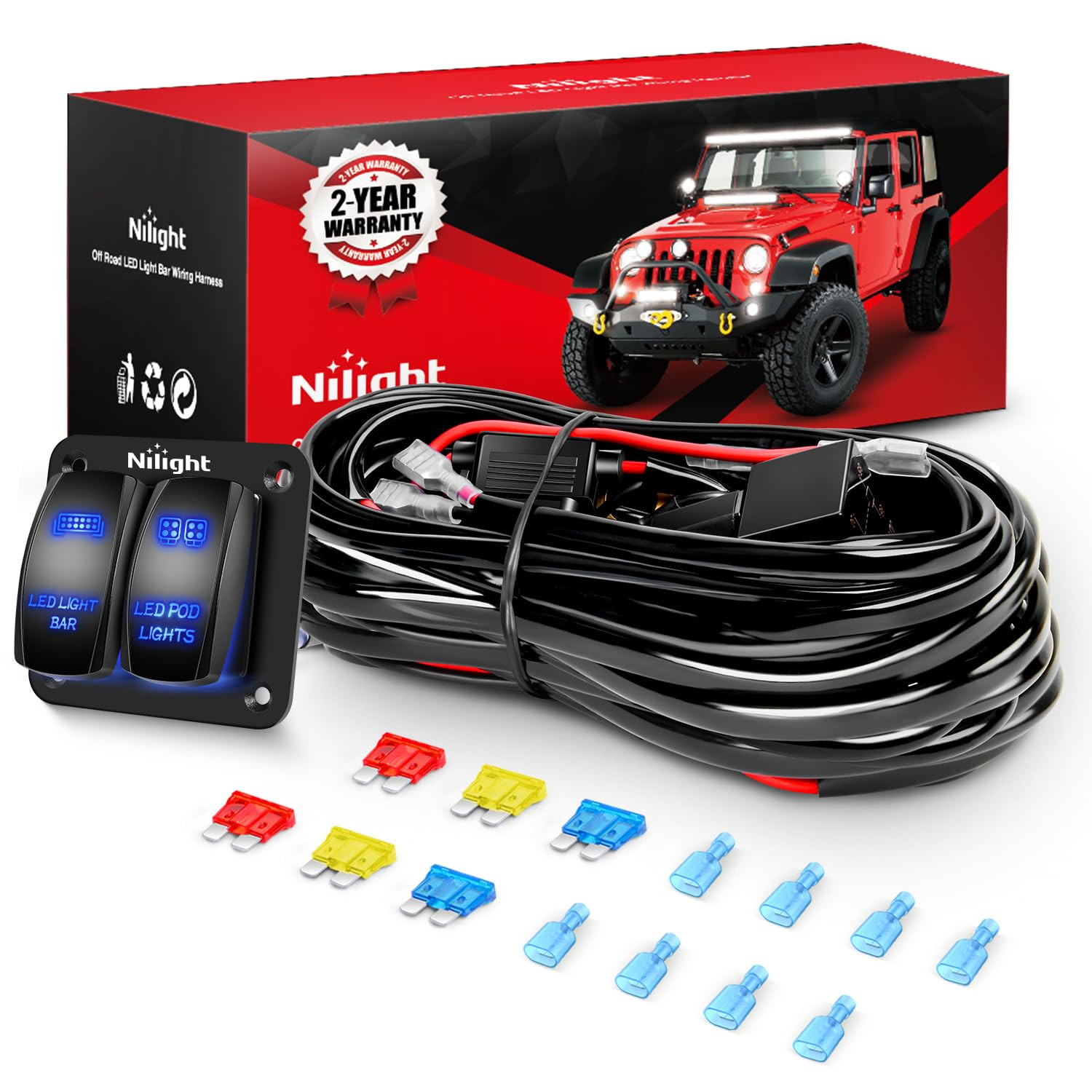

16AWG LED Light Bar Wiring Harness Kit 12V On/Off 2 Gang Rocker Switch Panel Power Relay Blade Fuse 5Pin Toggle Switches for Cars Boat ATV Trucks-4 LeadsDescription Part Number 10072W Model 10072W Included Components 2 Gang Rocker Switch with Wiring Harness Kit Item Weight 0.77 Kilograms Wire Diameter 1.3 Millimeters Connector Type Spade Connector Material Type Brass, Stainless Steel Cable Type Auxiliary Material Brass, Stainless Steel
Product description The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Wiring Harness Kit 2 Gang Switch Panel
Material quality: The panel is made of high-quality aluminum, can be install on any surface.
Power Rocker Switch
It is designed for easy control of LED lights, which also illuminates charming red to decorate your love car.
Four Leads
With four sets of light output connectors, the wiring harness can hook up 4 LED lights within 360W at the same time.
Water-resistant Lid
Specially designed cap for tight sealing, efficiently prevent water and dust from entering, upgrading waterproof performance.
Product Features Working principle and characteristics of the relay
It is actually an "automatic switch" that uses a smaller current to control a larger current. Relay plays the role of automatic adjustment, safety protection, and conversion circuits in the circuit.
How Do Fuses Work?
They consist Of a fusible element that melts or vaporizes when the current exceeds the fuse rating, breaking the electrical connection and thus safeguarding electrical devices.
- Power 5Pin Rocker Switch Panel
It is designed for easy control of LED lights, also illuminates charming red to decorate your car.
- Operating Voltage: 12V DC Power
The relay is made with conductive pins. It effectively protect the circuit and the lighting system.
-
More scientific and safer
Max Wattage: 180W, Max Ampere: 15A Fuse acts as the first Line of defense against overcurrent or short circuits to protect the circuit.
1 Wiring Diagram 2 Premium Wire 3 Rocker Switch 4 Automotive Relay 5 Inline Blade Fuse Connects to Power Source Hook Up Relay Connects to Light Bar Switch Operation On-Off Wide Applications
- Nilight Wiring Harness Kit is suitable for almost all 12V battery vehicles, such as jeeps, Tractors, ATVs, UTVs, cars, motorcycles, ships, yachts and trailers.
- Mainly used for controlling LED light bars, LED work lights, fog lamps, driving lights, headlights, taillights, off-road lights, etc.
Related Products Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 217 4.7 out of 5 stars 4,973 4.7 out of 5 stars 2,298 4.6 out of 5 stars 31,519 4.7 out of 5 stars 7,691 4.6 out of 5 stars 2,197 4.6 out of 5 stars 2,789 Price $32.39$32.39 $16.19$16.19 $19.40$19.40 $10.79$10.79 $15.29$15.29 $12.74$12.74 $11.90$11.90 Wire Gauge 16 AWG 14 AWG 12 AWG 16 AWG 16 AWG 16 AWG 16 AWG Length 10 FT 10 FT 10 FT 10 FT 10 FT — — Leads 4 Leads 1 Lead 1 Lead 2 Leads 2 Leads — — Switch 5 Pin Rocker Switch 5 Pin Rocker Switch 5 Pin Rocker Switch 3 Pin Switch 5 Pin Rocker Switch 5 Pin Rocker Switch 5 Pin Rocker Switch Input voltage 12V DC 12V DC 12V DC 12V DC 12V DC 12-24V 12-24V Max Working Current 15A Per Circuit 25A 40A 15A 15A 12V 20A； 24V 10A 12V 20A； 24V 10A
- Heavy-duty harness: 16AWG stranded wire, up to 360W load capacity. 180W per circuit, each switch controls a circuit. The harness is protected by power relay and inline blade fuse as the first Line of defense against overcurrent and short circuits.
- 4 leads Available: Nilight 2 gang rocker switch wiring harness with 4 leads. Each switch controls a separate circuit with 2 leads. For example, you can install 4 lights on this wiring harness. Two are installed in the front of the car and two are installed in the rear of the car. Switch 1 controls the front lights and Switch 2 controls the rear lights.
- Switch Panel: 2 gang rocker switch panel with blue indicator light when turning on. Laser-etched pattern, not easy to fade away. The switch is durable and has passed the test of 5,000 times pressing.
- Wide application: This wiring harness is suitable for almost all 12V battery vehicles such as automotive cars, campers, RVs, ATVs, UTVs, motorcycles, ships yachts, and trailers. If your power supply is 24V, please replace the original 12 V relay with a 24V relay.
- Package includes: 1 x 2 Gang wiring harness kit, blade fuses and spade connectors.
