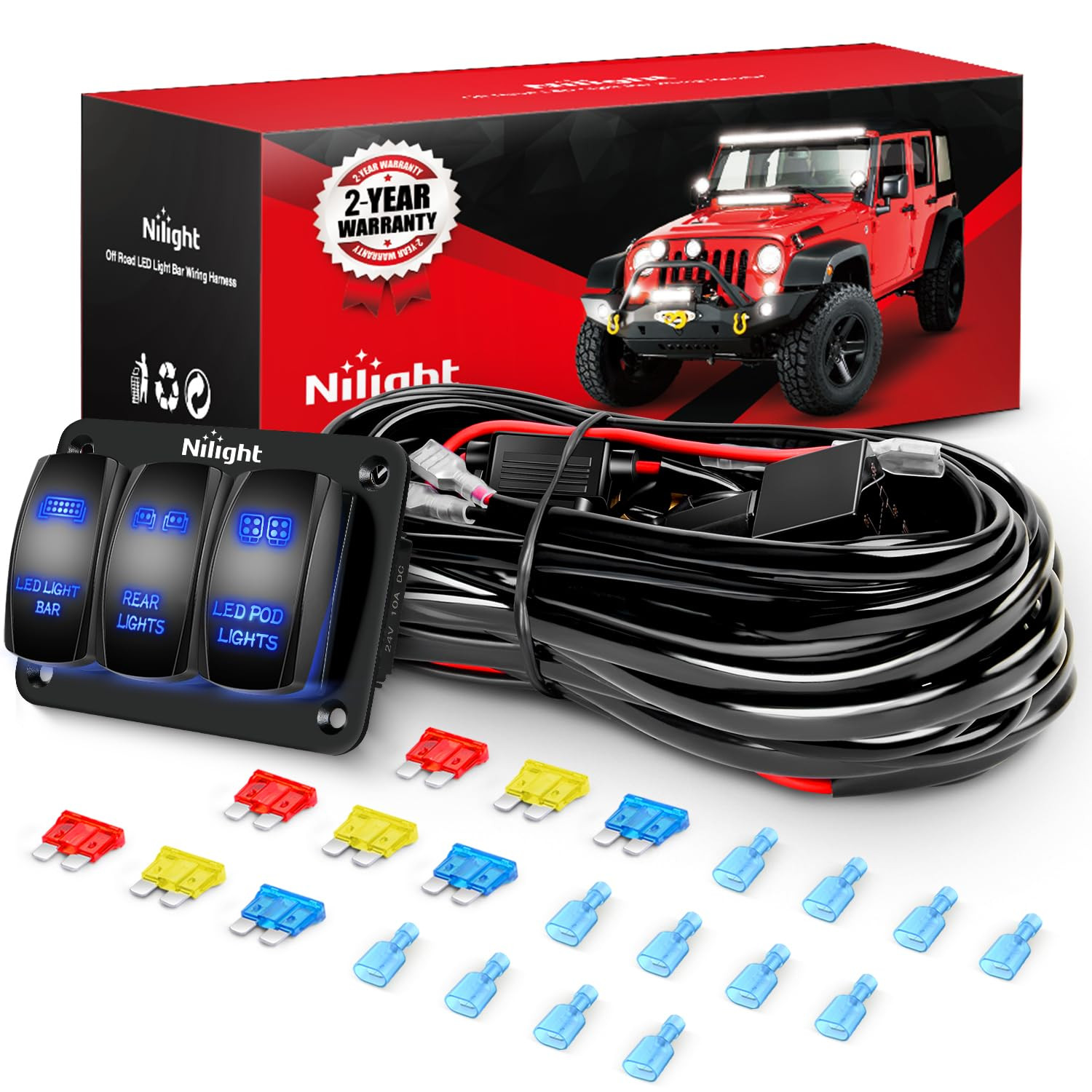

16AWG LED Light Bar Wiring Harness Kit 12V On/Off 3 Gang Laser Etched LED Pod Li For Sale

Product description The video showcases the product in use.The video guides you through product setup.The video shows the product being unpacked. Wiring Harness Kit

• Wire Gauge: 16 AWG, Working Voltage: 12V DC, Max Wattage: up to 540W load capacity. 180W per circuit
• Waterproof Rate: IP67
• Certifications: CE, FCC, RoHS. Lifespan: Over 50, 000 hours
• Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.

3 Gang Switch Panel

Material quality: The panel is made of high-quality aluminum, can be install on any surface.

Power Rocker Switch

It is designed for easy control of LED lights, which also illuminates charming red to decorate your love car.

Six Leads

With four sets of light output connectors, the wiring harness can hook up 6 LED lights within 540W at the same time.

Water-resistant Lid

Specially designed cap for tight sealing, efficiently prevent water and dust from entering, upgrading waterproof performance.

Product Features Working principle and characteristics of the relay

It is actually an \"automatic switch\" that uses a smaller current to control a larger current. Relay plays the role of automatic adjustment, safety protection, and conversion circuits in the circuit.

How Do Fuses Work?

They consist Of a fusible element that melts or vaporizes when the current exceeds the fuse rating, breaking the electrical connection and thus safeguarding electrical devices.

1. Power 5Pin Rocker Switch Panel

   It is designed for easy control of LED lights, also illuminates charming red to decorate your car.

2. Operating Voltage: 12V DC Power

   The relay is made with conductive pins. It effectively protect the circuit and the lighting system.

3. More scientific and safer

   Max Wattage: 180W, Max Ampere: 15A

   Fuse acts as the first Line of defense against overcurrent or short circuits to protect the circuit.

1 Wiring Diagram 2 Premium Wire 3 Rocker Switch 4 Automotive Relay 5 Inline Blade Fuse Connects to Power Source Hook Up Relay Connects to Light Bar Switch Operation On-Off Wide Applications

• Nilight Wiring Harness Kit is suitable for almost all 12V battery vehicles, such as jeeps, Tractors, ATVs, UTVs, cars, motorcycles, ships, yachts and trailers.
• Mainly used for controlling LED light bars, LED work lights, fog lamps, driving lights, headlights, taillights, off-road lights, etc.

• Heavy-duty harness: 16AWG stranded wire, up to 540W load capacity. 180W per circuit, each switch controls a circuit. The harness is protected by power relay and inline blade fuse as the first Line of defense against overcurrent and short circuits.
• 6 leads Available: Nilight 3 gang rocker switch wiring harness with 6 leads. Each switch controls a separate circuit with 2 leads. For example, you can install 6 lights on this wiring harness. Two are installed in the front of the car, two are installed in the rear of the car and two are installed interior of the car or anywhere you want. Each switch controls the lights from different locations.
• Switch Panel: 3 gang rocker switch panel with blue indicator light when turning on. Laser-etched pattern, not easy to fade away. The switch is durable and has passed the test of 5,000 times pressing.
• Wide application: This wiring harness is suitable for almost all 12V battery vehicles such as automotive cars, campers, RVs, ATVs, UTVs, motorcycles, ships yachts, and trailers. If your power supply is 24V, please replace the original 12 V relay with a 24V relay.
• Package includes: 1 x 3 Gang wiring harness kit, blade fuses and spade connectors.
