1945 Baldwin Locomotive Works Diesel Engine Weight List Blueprint Vee 3000 HP. Please reference photos and condition notes above. Best offer and combined shipping available. Please ask any questions before offerding. Approximate dimensions 24\" x 11.25\".

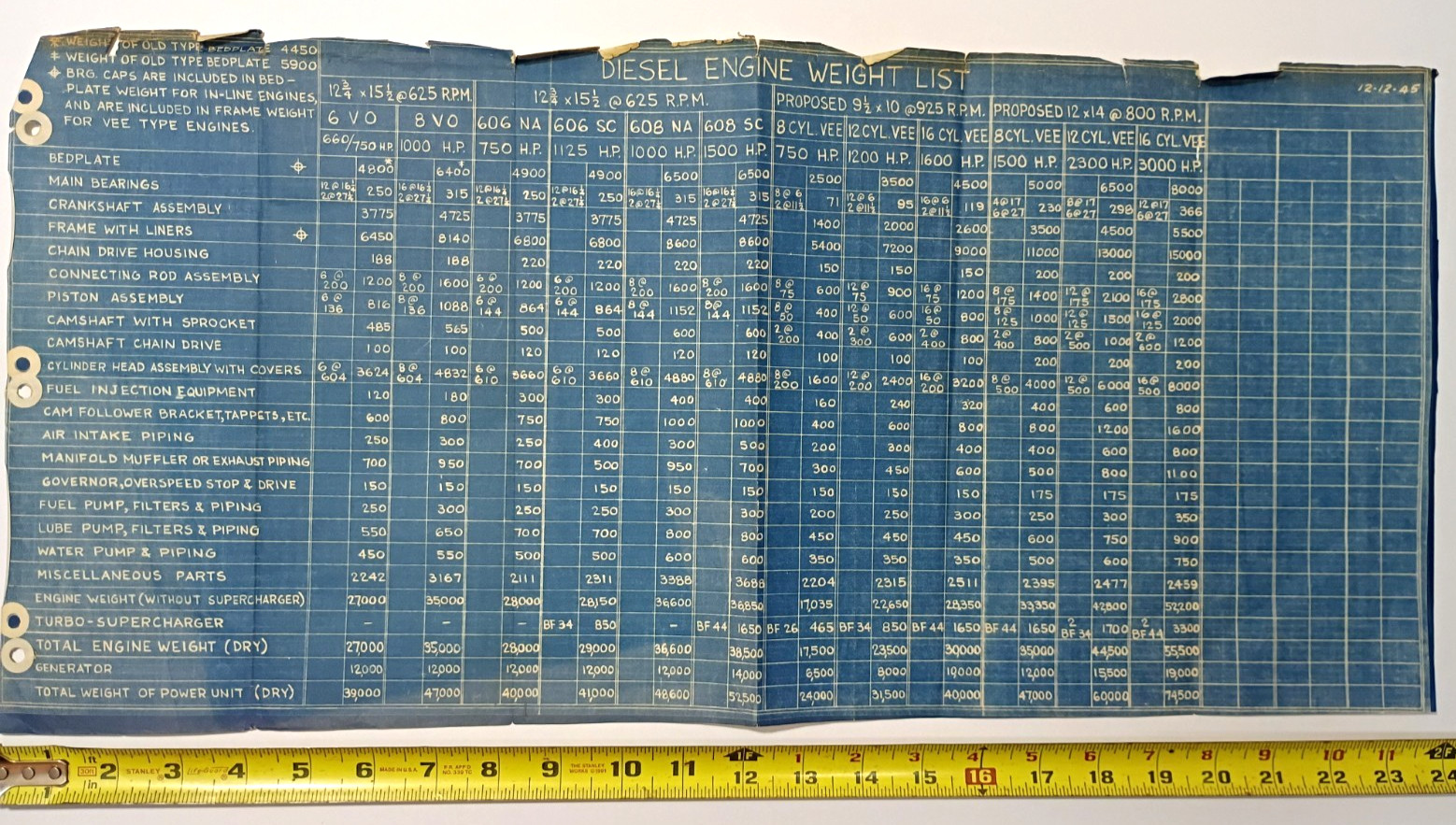

Original Baldwin engineering blueprint comparing component and complete power-unit weights for the 6VO, 8VO, 606NA, 606SC, 608NA and 608SC diesel engines with proposed 8-, 12- and 16-cylinder V-type engines ranging to 3,000 horsepower. Dated December 12, 1945. Produced during Baldwin\'s transition from its prewar VO engine to the new 600-series locomotive diesel program.
The blue background with pale drafting lines indicates that this is a blueprint reproduction of an engineering master, rather than the master tracing itself. The accordion folding and reinforced binder holes suggest that it was retained in an engineering reference file or binder where engineers could unfold the entire comparison chart.
Overall good condition with defects. Signs of corner, edge, and surface wear consistent with age and handling. This may include storage creasing, surface imperfections, and corner curling. Item as pictured.
