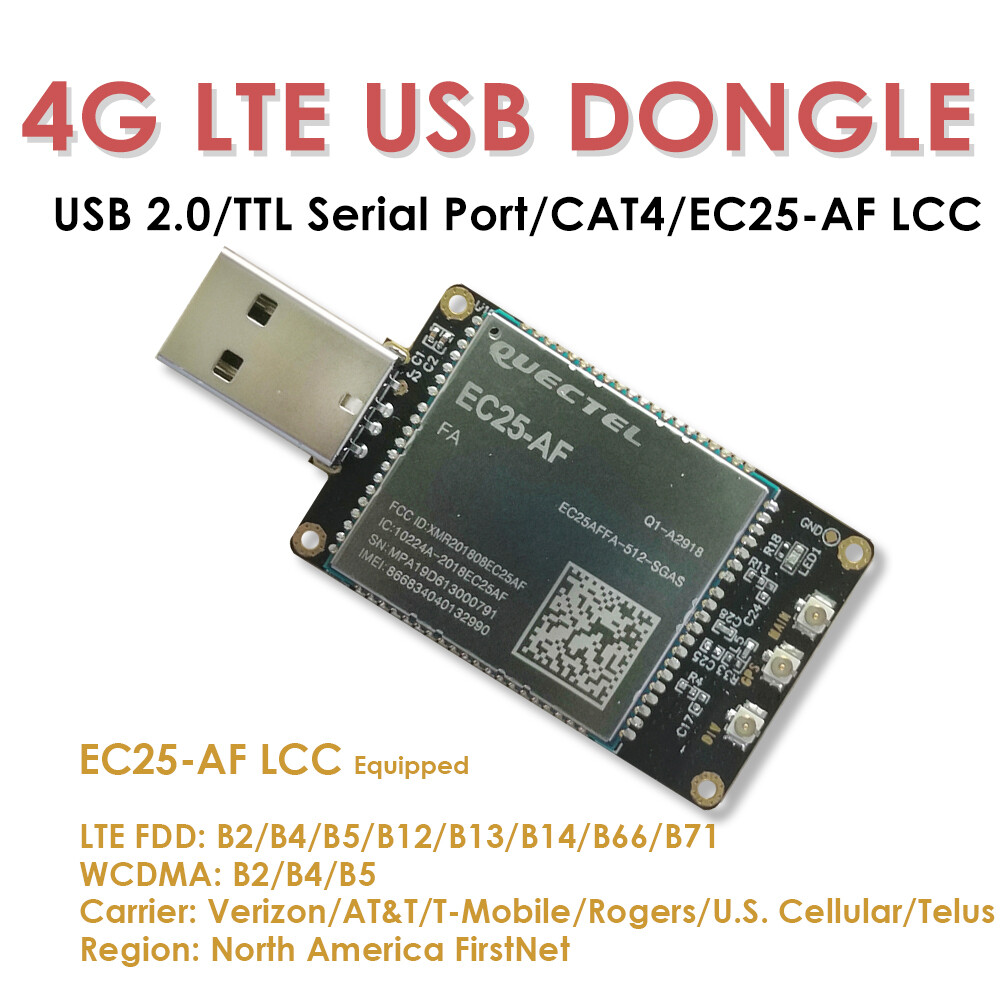

4G LTE USB Dongle W/Quectel IoT/M2M-optimized LTE Cat 4 EC25-AF SIM Card Slot For Sale

Store CategoriesStore Categories

• Motor
• Fashion
• Books, Movies & Music
• Collectibles & Art
• Home & Garden
• Sporting Goods
• Toys & Hobbies
• Business & Industrial
• Health & Beauty
• Detail
  Overview

  This 4G LTE dongle is equipped with 4G USB Dongle W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 LCC Module, which enables it be able to delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. It also can be used for Windows, Linux, Android after installing the corresponding drivers.

  This dongle adopts the industrial level electric circuit design and DC-DC power chip. The maximum current for this dongle is 3A, which can ensure it can working all fine even under severe environment.

  It has Micro SIM card slot(Corner facing outside when plugging in the SIM card). TTL(3.3V for RX, TX)

  Antenna Connector Diagram:

  4G Main Antenna(FPC Antenna x1 Attached), Aux Antenna, GPS/GNSS Antenna(Active/Passive Antenna Supported). LED Indicator depends on 4G Module(Power On-Slowly Flash, Search Signal-Quickly Flash, 4G Connected-Quickly & Stable 49.9mm(L)x30mm(W).

• USB is compliant with international criteria for USB2.0
• For bands available for this dongle, please refer to the specification of EC25.
• LED indicator will be always on when it it working.
• Drivers needed, please contact us for corresponding drivers after placing the order.

Package Contents

• 1x 4G USB Dongle W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 LCC Module Only
• 1x FPC Antenna Attached

Operation BandLTE Cat 4EC25-AF Mini PCIeRegion/OperatorNorth AmericaDimensions(mm)30.0 x 51.0 x 4.9Temperature RangesOperating Temperature-35°C to +75°CExtended Temperature-40°C to +85°CFrequency (Compass)/
Galileo/QZSS (Optional)CertificationsCarrierAmerica: Verizon/
AT&T (FirstNet)/T-Mobile
Canada: Rogers/TelusRegulatoryGlobal: GCF
America: FCC
North America: PTCRB
Canada: ICOthersRoHS/WHQLData TransmissionLTE-FDD Data Rates (Mbps)150 (DL)/ 50 (UL)LTE-TDD Data Rates (Mbps)/DC-HSPA+ Data Rates (Mbps)42 (DL)/ 5.76 (UL)WCDMA Data Rates (kbps)384 (DL)/ 384 (UL)EDGE Data Rates (kbps)/GPRS Data Rates (kbps)/Interfaces(U)SIMx 1UARTx 1USB2.0x 1Audio Digital(PCM)x 1LED_WWAN#x 1W_DISABLE#x 1UARTx 1PERST#x 1VoiceSpeech Codec ModesHR/FR/EFR/AMR/AMR-WBEcho ArithmeticEcho Cancellation/Noise SuppressionVoLTEDigital Audio and VoLTE
(Voice over LTE) (Optional)Enhanced Playback*/Audio Card Detection●DriversUSB Serial DriverWindows 7/8/8.1/10,
Linux 2.6–5.4,
Android 4.x–9.xGNSS DriverAndroid 4.x–9.xRIL DriverAndroid 4.x–10.xNDISWindows 7/8/8.1/10MBIMWindows 8/8.1/10,
Linux 3.18–5.4GobiNet DriverLinux 2.6–5.4QMI_WWAN DriverLinux 3.4–5.4Electrical FeaturesSupply Voltage Range3.0–3.6V, 3.3 V Typ.Power Consumption2.2 mA @ Sleep, Typ.
21.7 mA @ Idle
