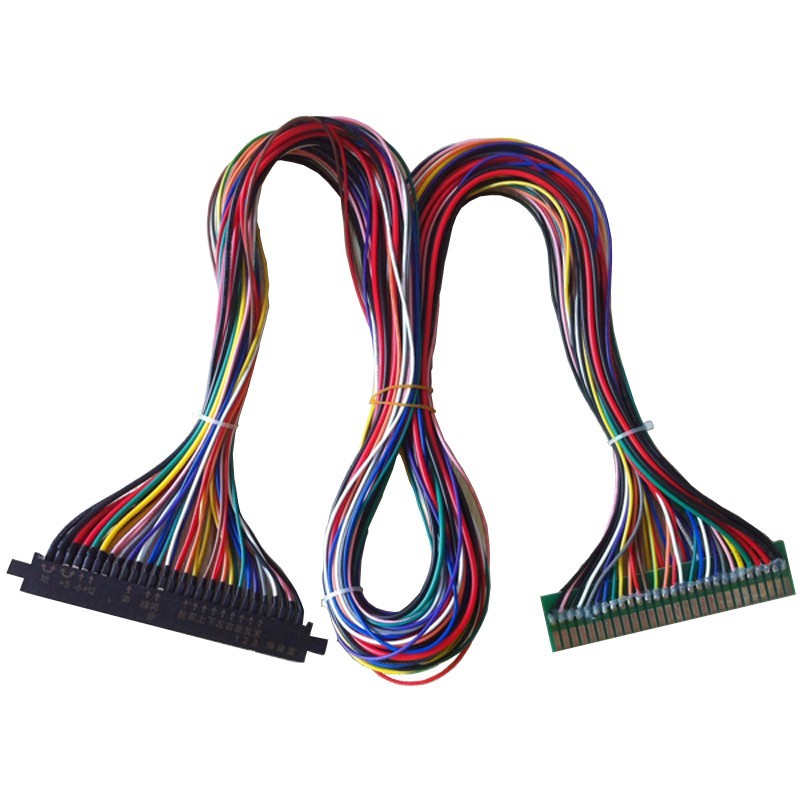

Top Quality Full 56 pin 100cm Jamma harness for arcade game board JAMMA Cabinet Wire / Wiring Harness Loom Arcade PCB
JAMMA Extender Harness is a simple solution to extend the length of your current 56-pin JAMMA harness. Ideal for extender the harness outside your cabinet for troubleshooting or making board swaps much quicker! Brand new JAMMA wiring harness made of high quality. All connections to your joystick and push button micro-switches are included and already fully assembled. The wires are all hand soldered through eye-loops to the high quality 56-pin edge connector, and then are fully heat shrink treated for extra protection. These harnesses have been updated and NOW include the -5VDC wire with fork connection to attach right to the JAMMA style switching power supply!
Features:
Quick, clean connections with attached.
All Power wires use 20AWG wiring and all other wiring uses 22AWG.
Fast connection to power supply with attached terminal forks for all voltages (+5VDC, +12VDC, -5VDC, GND).
Video signals connect through included standard monitor connector.
Full Grounding Loop for all those joystick/button micro-switches on your control panel.
Wiring Diagram:
Below is the basic pinout diagram for jamma pcb , you can use this as reference when you are connecting the wire/ harness.
JAMMA Pinout Chart:
Solder Side
The solder surface is the base surface of the PCB. It is the surface anywhere the soldered connections of lesser are bare to view. Few, if any, lesser are situated on the solder side.
Component Side
The lesser surface is the top surface of the PCB. It is the surface anywhere the lesser are located. The lesser surface pinout is recognized by means of numeric characters. Usually, the PCB is printed and the edge connector is embossed by means of the alpha and numeric characters.
Notice:
For Power Sections: When you are connecting power cables +5V +12V and -5V , please must double check before you connect them , if you connect them wrong , it\'s possible that you will get your jamma pcb damaged.
This Listing Include:
One pcs Full Jamma Extender Harness ( appro. 100cm)
We care your order
