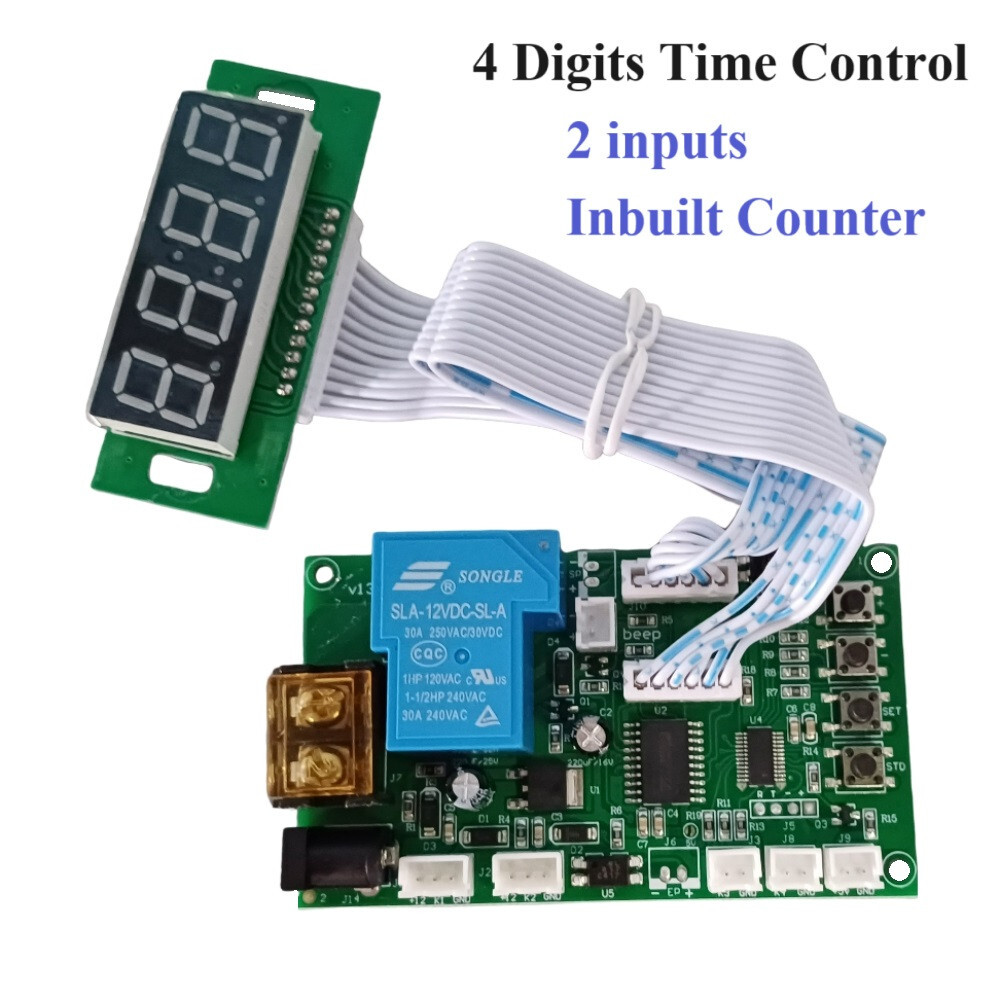

JY-15B2 with 2 Inputs Time Control Timer Board Power Supply for coin acceptor For Sale

Function Summary

• Input Voltage: DC+12V

• Standby: Display shows: 00:00, Rely: Normal Open (NO)

• Accumulated Time: Yes, add time if receive signals again when time is running

• Max current load: 10A

• Working Mode:




  Mode 1:

  Time runs down after receive signals-> Display shows remaining time and supply power to device-> it cuts off power after time runs out




  Mode 2:

  Display shows remaining time after receive signals-> push button start-> time runs down and supply power to device-> it cuts off power after time runs out

• Pause button:

  Push button pause: it cuts off power when pause, display shows remaining time. Re-supply power after push button pause again

• 2 Inputs for 1 coin acceptor and 1 bill acceptor by pulse signal

• Setting Video: We provide setting video

• Mode Setting Reference

Function

Code on Display

Description

A

B

Running Time

01

01

Time runs down without pressing button

02

Time runs down by pressing button

Time Type

02

03

MINUTE: SECOND

04

HOUR: MINUTE

Memory

03

05

Yes: Remaining time keep running after power off and on

06

No: Standby power off and on

Back to standby

04

1-30

user has no action after push buttons or receive signals in setting time

Default: 01-03: Bold and base line. 04: not use the function.

Optional Function

Self prepare wires for connector

• Warning sign for last 0-60 seconds): outputDC12V

• Working sign:OutputDC5Vwhen time is running

• ButtonPause

• ButtonStart for mode 01:02

• Warning sign for time start and end (Self solder wire)


Size

White lead: 40 cm
