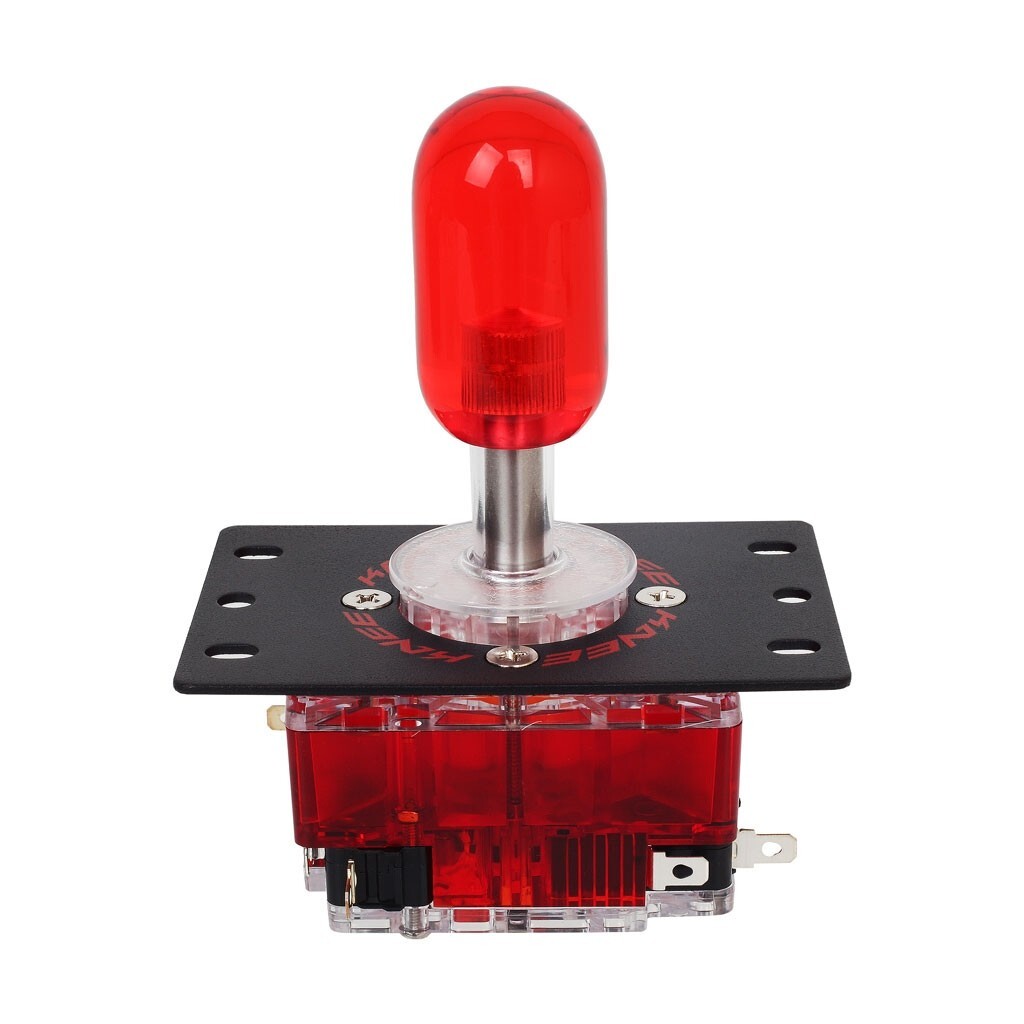

Samducksa Crown Knee Lever - Neo Edition Joystick Korean Professional:
$89.69

Knee Lever NEO Specifications

Grip: Red clear acrylic encapsulated handle
Shaft: Stainless Steel
Shaft Washer: Clear polycarbonate
Dust Cover : Clear polycarbonate
Bracket: 1.6T iron plate + coating + printing
Tension Rubber Grommet: 30+ specialized for Knee players
Bobbin: Acetal
Low Collar upper Housing: Clear Polycarbonate
Bottom Housing: Red clear polycarbonate
Actuator: 16.1mm acetal
Switches: 3 Gersung A3KN wide hinge switches, 1 Gersung A3 standard hinge switch
Guide (Gate): Circle-Square of clear polycarbonate

Installation Requirements:

Arcade joystick with at least 65mm wide, 97mm long and 43mm high internal space to mount the lever.
Arcade joystick with JLF standard mounting bracket type

Compatible with Sanwa Mount

The KNEE lever NEO possesses a low profile 35mm collar. Its multi-mounting plate has holes to install in Sanwa-compatible Fightsticks that have enough body clearance.

Tension via Rubber Grommet, Not Metal Spring

Additionally, there is no tension spring. Instead most Korean levers use a rubber grommet placed in the housing.  This surrounds the shaft, and a plastic or Delrin bobbin keeps shaft in place.

Package Includes:

1x Crown/Samucksa Knee Lever - Neo Edition Joystick Korean Professional
