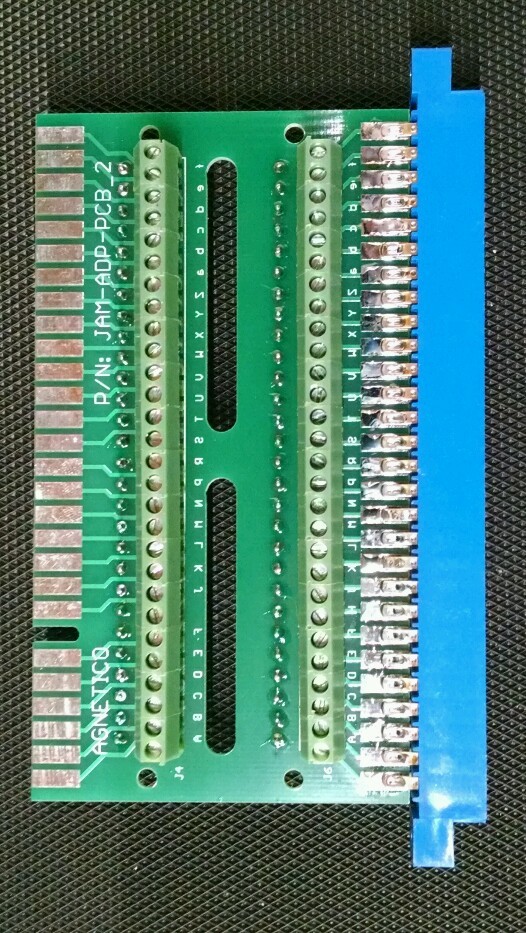

Designed and manufactured in the USA, this Universal JAMMA Adapter allows you to quickly and easily convert most arcade PCBs to a standard JAMMA harness. Just cut, strip and place wires between the sets of terminal blocks then tighten the screw terminals. This is by far the quickest and easiest way I\'ve found to convert an arcade cabinet or just to testand troubleshoot a PCB. With no soldering and easy re-work and re-configuration between PCBs you can quickly get your boards up and running.
Improvement from version 1:
- Now with version 2 I have placed two slots in the middle of the PCB so that routing signals from one side of the PCB to the other can be done more easily.
Now Available 44 Pin Universal Adapter
- Check out my other sale for Item ID: 153454466174:If your cabinet is already set up for a 44 pin game you can now convert it to a 56 pin card edge connector with this new product.
Product Description:
The board makes contact to the JAMMA harness through the use of a keyed finger edge connector which terminates to two rows of sturdy terminal block connectors. The PCB mating side consists of a 56 pin card edge connector which terminates to two additional rows of terminal blocks. The user will only need to cut wires to length, strip the ends, make the desired connections,and tighten down the screws in the terminals. Safety First: Always use wires capable of handling the current of your PCB, when in doubt look up the power requirements of the board prior to use.
What\'s Included:
1 Universal JAMMA Adapter
Customization:
If the 56 pin card edge connector doesn\'t meet your PCB\'s needs please let me know and I can leave this component off or replace it with a connector that meets your needs. Currently I stock 44 and 36pin connectors that can be placed at no extra cost or I can leave it unattached so you can place it to meet your needs.
Shipping:
The board will easily fit into a padded USPS Priority Mail envelope. I can ship internationally if desired, just let me know your location and I will get back to you with a rate.
Thanks for looking and feel free to contact me with any questions.
