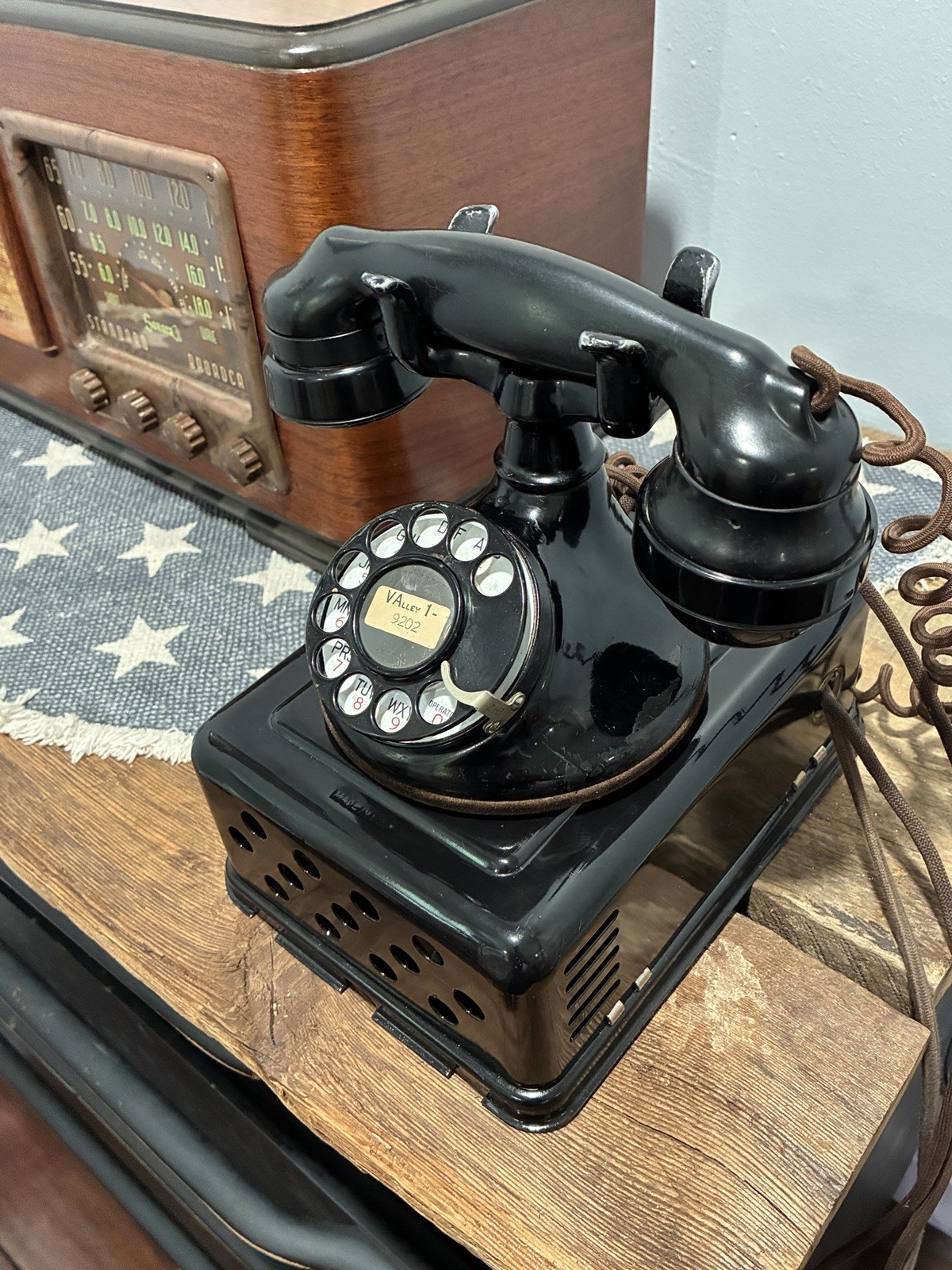

Western Electric B1 Round Base 102, 2HB DIAL, E1 bullet trnsmtr 534A subset 1928 For Sale

Western Electric Model 102 (B1 Mount) ROUND-Base Telephone (only produced from late 1927 - 1930)— E1 Handset, 2HB DIAL
with Original BULLET Transmitter/Spitcup Mouthpiece — Matching 534A
Sidetone Subset — Restored, Fully Working, 1928Western Electric telephone set on the round B1
base (the mounting that was later given the \"102\" designation), paired
with its correct E1 handset WITH Bullet transmitter aka”spit cup” This is the early combined-handset design
that succeeded the candlestick telephone — one of the first widely
distributed sets in the Bell System to put the transmitter and receiver
into a single handpiece.HANDSET
The E1 handset retains its original bullet-style transmitter under the
recessed \"spitcup\" mouthpiece cap — the earlier of the two transmitter
styles used during this handset\'s production run (later production
switched to a flat plastic-screened transmitter). Handset connects to the B1 base via its
Upgraded original curled cord.BASE / FINISH
Round B1 base retaining its original black Japan lacquer finish — not repainted or
refinished.SUBSET
Matching No. 534A steel-cased sidetone subset — identified by its
construction. This is the external ringer/network box these hand
telephone sets require, since the deskset itself contains only the
switchhook and holds no ringer or induction coil. The subset has been
powder-coated as part of the restoration — noted here for full
transparency, the telephone has its original finish and only the subset has been refinished.WIRING / CORDS
Original cloth-covered cordage is intact and uncut throughout — from the
handset to the base, and from the base to the subset. The four-conductor
cloth cord has NOT been cut or spliced; it
terminates into a jack then to a RJ11 for practical
hookup, done non-destructively so the original cording is fully
preserved and reversible.DIAL
* This phone retains its ORIGINAL WORKING No. 2HB DIAL — a dial that Bell System itself made scarce over time, since old No. 2 dials were routinely field-converted to the later No. 4 style by plugging the exposed fingerstop screw holes. A complete, original, correctly-functioning 2HB is a sought-after component among collectors doing accurate restorations of this era.\"
Contacts Carefully cleaned and properly lubricated with clock oil the ORIGINAL No. 2HB Dial, correct to this production run,
Dials smoothly and returns properly.
RESTORATION / FUNCTION
I\'m a General Class licensed amateur radio operator and did the full
mechanical and electrical restoration myself. The phone is correctly
wired, dials out beautifully, and both transmitter and receiver perform
well on a POTS line OR an ATA VoIP. As expected for an original bullet-transmitter
handset of this era, audio has the characteristic limitations of that
period\'s technology — works great and is fully functional “Plug and play” ready complete with subsetAGE
Confirmed 1928 by internal date codes.Feel free to message with any questions — happy to answer and to take
additional photos of any detail before you consider purchasing.
